Detailed introduction
Tower obstruction lighting typically consists of a combination of steady-burning red lights and flashing lights. The L 810 LED obstruction light is an essential component of tower obstruction lighting systems. Designed to enhance aviation safety, these lights are used to clearly mark tall structures, such as towers, cranes, or buildings, that may pose a hazard to aircraft navigation.
The L 810 LED obstruction light offers several advantages over traditional incandescent lights. It utilizes highly efficient LED technology, providing bright and visible illumination while consuming less energy. This energy efficiency not only reduces operational costs but also aligns with environmental sustainability goals.
These obstruction lights are built to withstand harsh weather conditions and are designed for long-lasting performance. They feature a durable housing that protects the light from damage caused by UV radiation, corrosion, and extreme temperatures. This ensures reliable operation and minimizes the need for frequent maintenance.
The L 810 LED obstruction light also incorporates advanced control and monitoring capabilities. It can be easily integrated into control systems, allowing remote monitoring and control of the lights. This enables efficient maintenance scheduling, immediate fault detection, and swift response to any issues, enhancing the overall reliability of the obstruction lighting system.
Compliant with international aviation regulations, the L 810 LED obstruction light meets the requirements set by organizations such as the International Civil Aviation Organization (ICAO) and the Federal Aviation Administration (FAA). It emits a steady or flashing red light, depending on the specifications, ensuring maximum visibility for pilots and helping them navigate safely around obstacles.
In summary, the L 810 LED obstruction light is a cutting-edge solution for tower obstruction lighting. Its energy efficiency, durability, and advanced features make it a reliable choice for marking tall structures and ensuring aviation safety. By employing these lights, tower owners and operators can fulfill their regulatory obligations and actively contribute to safe air navigation.
Compliance:
1. International Civil Aviation Organization (ICAO), Aerodromes, Annex 14, Volume 1, Eighth Edition, dated July 2018
2. FAA L-810.
Features:
1. Adopt super bright CREE brand LED, high intensity with a lower energy consumption.
2. Input voltage available in DC(12-48V DC) or AC(100-265V AC 50-60Hz).
3. Unique design and UV protected polycarbonate for the obstruction light protect cover.
4. Efficient photometric design provides excellent light distribution, make sure meet ICAO and FAA demand.
5. Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection, long time service time
6. No screw fix type - just twist, the cover will be fixed tightly.
7. Built-in photocell for daytime and night operation.
8. Surge and lightning protection.
9. 3/4 inch Pipe thread installation.
Specification:
|
Product Name |

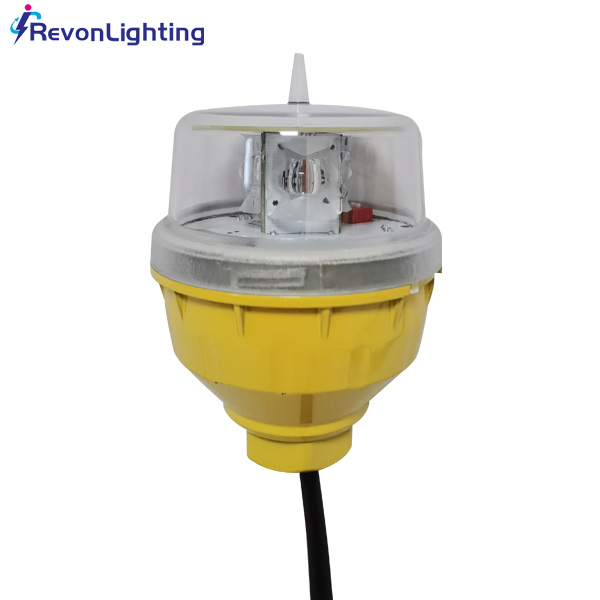

Tower obstruction lighting L 810 LED obstruction light AO-LI-B1 |
|
Mode NO.: |
AO-LI-B1 |
|
Color: |
Red/yellow/blue/white etc |
|
Light source:
|
CREE LED |
|
LED life time
|
100000hrs |
|
Light Intensity(cd): |
>32.5cd (other 10cd, 100cd as optional) |
|
Horizontal Output(degrees): |
360 degree |
|
Vertical Divergence(degrees): |
>10 degree |
|
Flashing Characteristics:
|
Fixed light/20/30/60fpm adjustable by DIP switch
|
|
Operation Mode: |
Night working, daytime off |
|
Input: |
100-240VAC 50-60Hz, 12-48VDC(Details contact us) |
|
Power Consumption(W): |
Average Power consumption<3W |
|
Circuit Protection: |
Integrated |
|
Obstruction Light Material: |
PC cover, lens and Powder coated die-casting aluminum base. |
|
Weight(kg): |
0.3kg |
|
IP Grade: |
IP66 |
|
Work environment: |
-50℃~+60℃, Humidity 0%-100% |
|
Optional functions(Separate charges): |
1. infra-Red (IR) light for NVG 2. Mounting bracket 3. Other functions etc. |

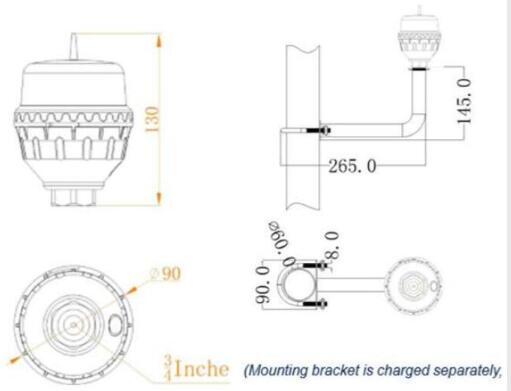

Dimension & Installation:
Applications:

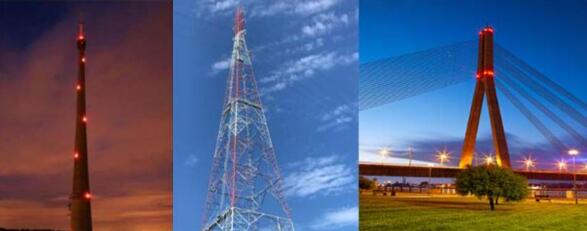

Tower obstruction lighting L 810 LED obstruction light AO-LI-B1 is used for telecommunication Tower, TV/Radio Tower, transmission Tower, high-rise building, industrial Chimney & Cooling Tower, tower Crane, big bridge, wind turbine, airfield & helipad, storage tank & water tower, wind turbine, oil & Gas offshore platform etc when the obstacle height is more than 45m. It also can use as airport obstruction lights.
