Heliport Beacon Color: The Visual Language of Vertical Flight

In the realm of aviation, clarity and precision are paramount. Whether navigating a busy airspace or approaching a rooftop landing pad, pilots rely heavily on visual cues. One such critical signal is the heliport beacon color, a simple but powerful tool that ensures safe and efficient operations in heliport environments. More than just a light, heliport beacon color communicates vital information at a glance—especially during nighttime or low-visibility conditions.



Understanding the Heliport Beacon

A heliport beacon is a rotating or flashing light that marks the location of a heliport. These beacons are typically installed at ground-level facilities or rooftop helipads and are visible from a significant distance. Their primary function is to help helicopter pilots identify the landing area during conditions where natural visibility is compromised.



Unlike airport beacons, which serve larger fixed-wing aircraft and follow different color patterns, heliport beacons are specialized for rotary-wing operations. They follow unique signaling protocols governed by aviation authorities such as the Federal Aviation Administration (FAA) and the International Civil Aviation Organization (ICAO).



The Significance of Heliport Beacon Color

The heliport beacon color is not arbitrary—it follows specific regulations and standards. The chosen color pattern conveys critical information about the facility, ensuring that pilots are not misled by similar lights in the surrounding area.

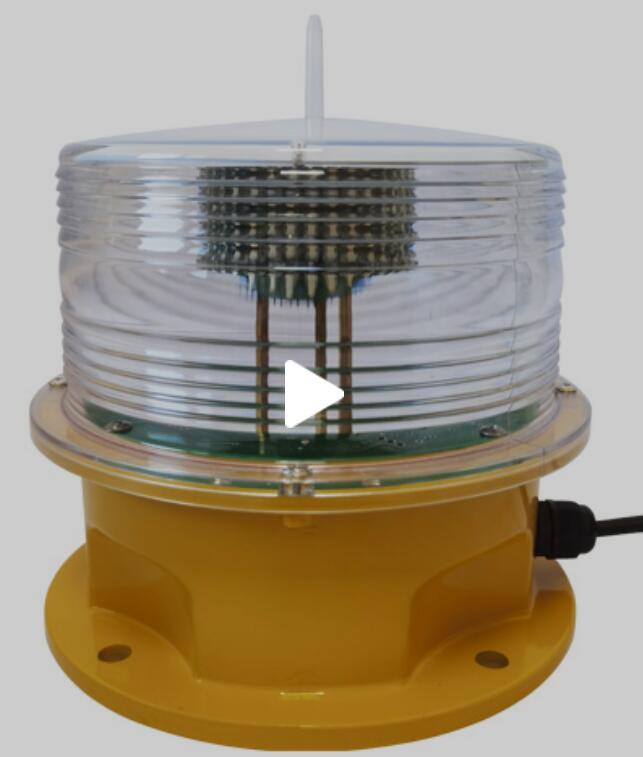

Heliport Beacon



Standard Heliport Beacon Color

According to FAA guidelines, the standard heliport beacon color is green, yellow, and white. These three colors are arranged in a rotating or flashing sequence, typically in the following order:



White



Green



Yellow



This tri-color pattern is what distinguishes heliport beacons from other types of aviation lights. For comparison:



An airport beacon for civilian land airports shows white and green.



A military airport beacon displays white and dual-peaked green.



A seaplane base uses white and yellow.



Thus, the inclusion of yellow in the heliport beacon color sequence sets it apart, alerting helicopter pilots to the correct destination.



Why Beacon Color Matters

Helicopter operations often involve shorter runways, tighter landing areas, and unpredictable weather. Pilots need to make split-second decisions, and identifying a heliport quickly is crucial. Heliport beacon color serves as a non-verbal, visual code that instantly informs the pilot:



The presence of a heliport



Its operational status (if the beacon is on)



Its suitability for rotary-wing aircraft



Especially in urban areas, where city lights can confuse visual navigation, a unique beacon color sequence helps avoid misidentification. It minimizes the risk of approaching a non-heliport structure, which can lead to dangerous outcomes.



Design Considerations for Heliport Beacon Color

In designing and installing heliport beacons, several considerations ensure effectiveness:



Light Intensity: Beacons must be bright enough to be seen from the air but not so intense as to cause glare or distraction.



Flash Rate: The flash cycle must be consistent with FAA standards—typically between 30 and 45 flashes per minute.



Color Accuracy: The green, yellow, and white lenses or LEDs must emit light within approved chromaticity ranges. Color shifts due to age or weathering can reduce effectiveness.



Mounting Location: Beacons are typically installed above obstructions and are visible from a 360-degree horizontal plane, enhancing aerial visibility.



By following these guidelines, heliport operators ensure that beacon color not only meets compliance standards but also serves its life-saving purpose effectively.



Challenges in Beacon Color Implementation

Despite the simplicity of the concept, maintaining proper heliport beacon color visibility comes with challenges:



Urban Clutter: Cities with numerous lights can obscure or mimic beacon signals. Maintaining color purity and brightness helps offset this issue.



Weather Conditions: Fog, rain, and snow can distort color perception. High-intensity LEDs with focused beams help preserve clarity.



Colorblind Pilots: While rare, some pilots may have difficulty distinguishing between certain colors. This is why heliport beacon color is supplemented with other visual markers like perimeter lighting and surface markings.



Technological Advancements

Modern heliport beacons are transitioning to LED technology, which offers:



Better color consistency: LED systems allow for precise control of the green, yellow, and white outputs.



Longer lifespan: LEDs reduce maintenance cycles, ensuring beacons stay functional longer.



Energy efficiency: Lower power consumption makes them suitable for off-grid or solar-powered systems.



Additionally, smart control systems now allow for remote activation and monitoring of beacon performance, further enhancing safety and reliability.



International Standards and Variations

While the tri-color heliport beacon is standard in the United States, other countries may follow variations:



ICAO guidelines suggest a flashing white beacon for heliport identification, especially in international settings.



Some nations use dual white flashes to denote active heliport locations.



Military installations may adopt different sequences or include infrared lights for covert operations.



For pilots flying internationally, recognizing these subtle differences in heliport beacon color is vital for adapting to local airspace rules.



Complementary Visual Aids

Heliport beacon color works in tandem with other visual aids to create a comprehensive landing environment:



Perimeter Lighting: Green edge lights outline the Touchdown and Lift-Off (TLOF) area.



Floodlights: Illuminate the landing surface without interfering with the beacon's visibility.



Wind Indicators: Lighted wind cones assist in determining wind direction for approach.



Together, these elements create a unified visual system anchored by the heliport beacon color.





The heliport beacon color may seem like a minor detail in the grand scheme of aviation, but its role is fundamental. As a clear, standardized signal, it provides helicopter pilots with fast and accurate identification of safe landing zones—especially in challenging conditions.



From its precise tri-color pattern to its evolving technological capabilities, heliport beacon color is more than a feature—it's a lifeline. As urban air mobility and emergency air services grow, the importance of maintaining clear, consistent, and compliant beacon lighting will only increase. In the language of aviation, color speaks volumes—and heliport beacon color speaks safety.
